Model Selection - Please click
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|

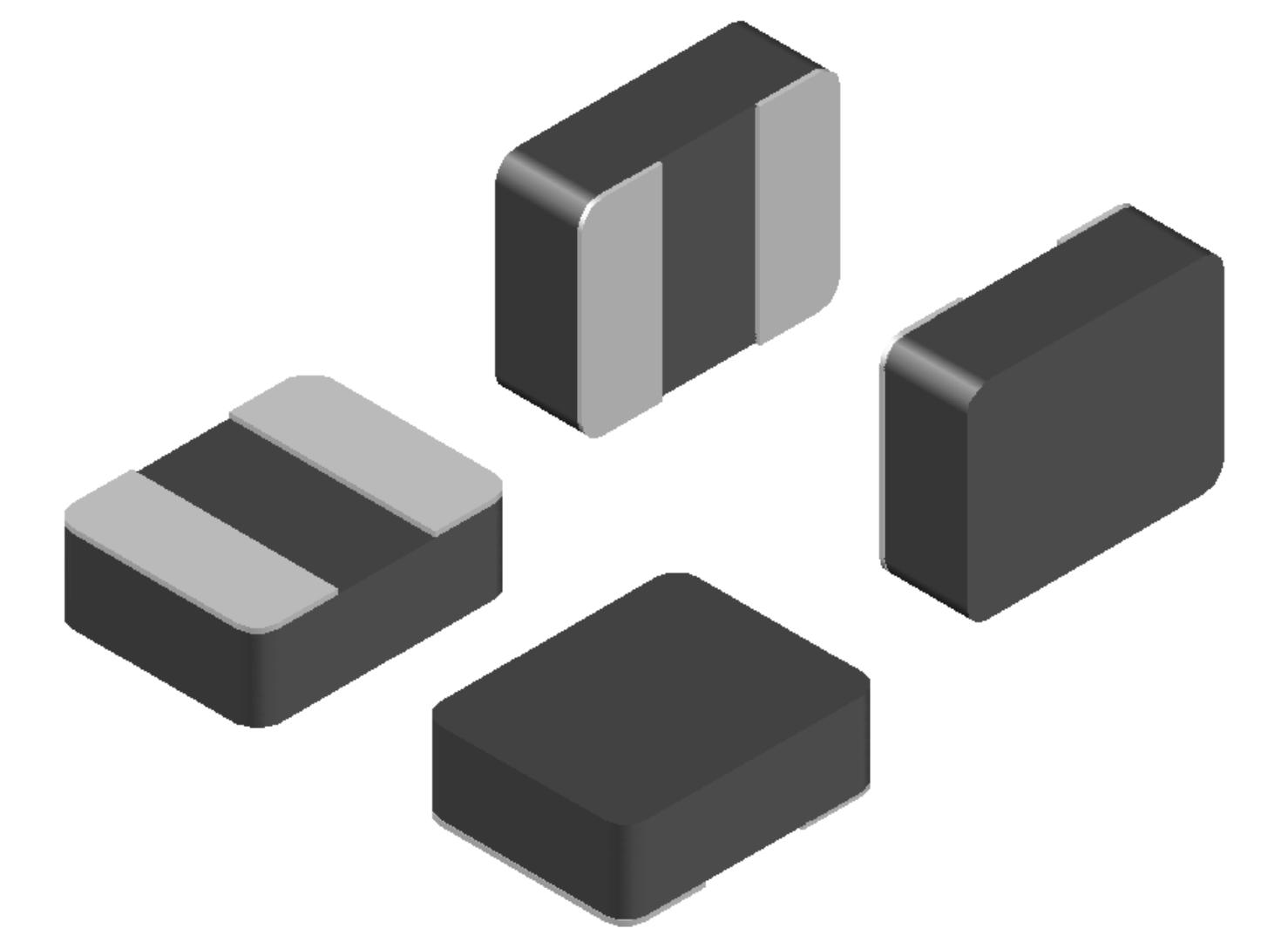

 | Miniaturized Molded power inductor | FWP201610P | 2.0*1.6*1.0 | 0.24uH-2.2uH | 17mΩ-150mΩ | 1.71A-2.6A | 1.50A-5.0A | - 40 °C + 125 °C | FWP201610P.pdf |
| FWP252010P | 2.5*2.0*1.0 | 0.33uH-4.7uH | 21mΩ-262mΩ | 1.62A-6.6A | 1.22A-4.4A | - 40 °C + 125 °C | FWP252010P.pdf | ||
| FWP252012P | 2.5*2.0*1.2 | 0.47uH-4.7uH | 21mΩ-235mΩ | 1.58A-5.3A | 1.40A-4.6A | - 40 °C + 125 °C | FWP252012P.pdf | ||
| FWP322512A | 3.2*2.5*2.3 | 0.47uH-6.8uH | 19mΩ-210mΩ | 2.1A-7A | 1.2A-5.2A | - 40 °C + 125 °C | FWP322512A.pdf | ||

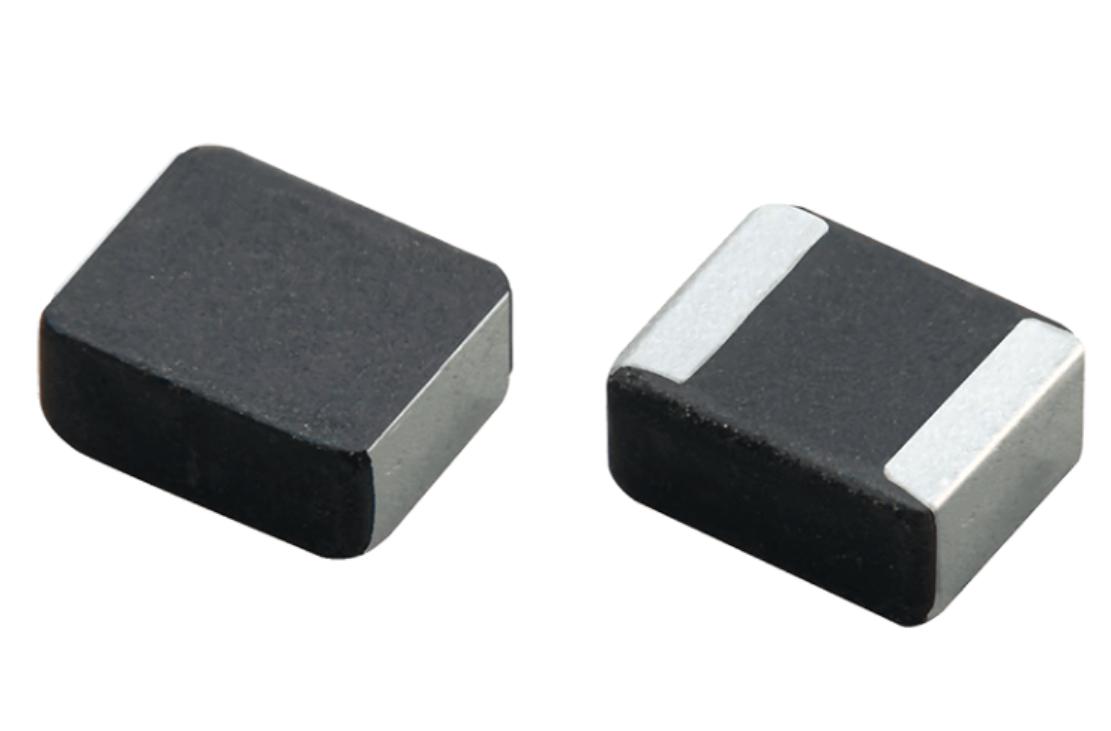

 | Miniaturized Molded power inductor | FXLB201610 | 2.0*1.6*1.0 | 0.24uH-4.7uH | 16mΩ-288mΩ | 1.6A-7.2A | 1.1A-6.3A | - 55 °C + 125 °C | FXLB201610.pdf |
| FXLB252012 | 2.5*2.0*1.2 | 0.33uH-4.7uH | 14mΩ-190mΩ | 2.1A-8.5A | 1.5A-6.0A | - 55 °C + 125 °C | FXLB252012.pdf | ||
 | Miniaturized Molded power inductor T-CORE | FTC100765D | 1.0*0.7*0.65 | 1.5uH-2.6uH | 500mΩ-900mΩ | 0.8A-0.9A | 0.3A-0.4A | - 55 °C + 125 °C | FTC系列.pdf |
| FTC121065S | 1.2*1.0*0.65 | 2.2uH | 340mΩ | 0.9A | 1.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160865S | 1.6*0.8*0.65 | 0.22uH-2.2uH | 43mΩ-430mΩ | 1.3A-4.5A | 1.1A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160808S | 1.6*0.8*0.8 | 0.22uH-10uH | 40mΩ-1600mΩ | 0.7A-5.0A | 0.45A-3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141265S | 1.4*1.2*0.65 | 0.33uH-0.47uH | 32mΩ-38mΩ | 3.6A-4.0A | 2.6A-4.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141207S | 1.4*1.2*0.7 | 0.24uH-0.47uH | 28mΩ-38mΩ | 3.5A-4.3A | 3.3A-3.6A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141208S | 1.4*1.2*0.8 | 0.24uH-1.0uH | 27mΩ-77mΩ | 2.5A-5.7A | 2.5A-3.7A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201265S | 2.0*1.2*0.65 | 1.0uH-2.2uH | 86mΩ-230mΩ | 1.5A-2.5A | 1.4A-2.3A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201208S | 2.0*1.2*0.8 | 0.11uH-4.7uH | 12mΩ-325mΩ | 1.4A-9.0A | 1.5A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201210S | 2.0*1.2*1.0 | 0.1uH-10uH | 13mΩ-660mΩ | 1.0A-8.0A | 1.0A-7.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201212S | 2.0*1.2*1.2 | 0.11uH-3.3uH | 6.2mΩ-210mΩ | 1.8A-11.0A | 1.6A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201655S | 2.0*1.6*0.55 | 0.33uH-0.47uH | 41mΩ-53mΩ | 3.0A-3.5A | 3.0A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201665S | 2.0*1.6*0.65 | 1.0uH | 70mΩ | 2.7A | 3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201607S | 2.0*1.6*0.7 | 2.2uH | 175mΩ | 2.0A | 1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201608S | 2.0*1.6*0.8 | 0.22uH-10uH | 19mΩ-800mΩ | 0.9A-5.6A | 0.9A-5.9A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610S | 2.0*1.6*1.0 | 0.1uH-10uH | 12mΩ-580mΩ | 0.7A-8.4A | 1.1A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610D | 2.0*1.6*1.0 | 2.2uH-4.7uH | 125mΩ-276mΩ | 1.7A-3.0A | 1.4A-2.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201612S | 2.0*1.6*1.2 | 0.1uH-3.3uH | 6.0mΩ-165mΩ | 2.3A-11.5A | 2.0A-10.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252075S | 2.5*2.0*0.75 | 2.2uH-10uH | 90mΩ-530mΩ | 0.9A-2.4A | 0.9A-2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252008S | 2.5*2.0*0.8 | 0.47uH-10uH | 27mΩ-600mΩ | 0.9A-5.3A | 1.2A-6.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252010S | 2.5*2.0*1.0 | 0.22uH-22uH | 17mΩ-1300mΩ | 0.9A-7.9A | 0.6A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252012S | 2.5*2.0*1.2 | 0.1uH-10uH | 10mΩ-400mΩ | 1.45A-12.5A | 1.05A-10.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322510S | 3.2*2.5*1.0 | 0.22uH-10uH | 11mΩ-365mΩ | 1.8A-8.0A | 1.8A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322512S | 3.2*2.5*1.2 | 0.1uH-10uH | 7.0mΩ-230mΩ | 1.9A-16.5A | 1.8A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322520S | 3.2*2.5*2.0 | 0.33uH-6.8uH | 9.0mΩ-125mΩ | 2.9A-14A | 2.3A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303010D | 3.0*3.0*1.0 | 6.8uH-10uH | 270mΩ-360mΩ | 1.3A-1.5A | 1.7A-1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303012D | 3.0*3.0*1.2 | 1.0uH-15uH | 27mΩ-380mΩ | 1.6A-5.5A | 1.3A-5.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303015D | 3.0*3.0*1.5 | 0.15uH-22uH | 6.0mΩ-700mΩ | 1.2A-15.0A | 1.0A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303018D | 3.0*3.0*1.8 | 0.22uH-4.7uH | 7.0mΩ-87mΩ | 4.2A-16.0A | 3.0A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303020D | 3.0*3.0*2.0 | 0.15uH-15uH | 5.0mΩ-260mΩ | 2.2A-17.0A | 1.5A-12.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404010S | 4.0*4.0*1.0 | 10uH | 280mΩ | 2.0A | 2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404012S | 4.0*4.0*1.2 | 0.47uH-10uH | 14mΩ-235mΩ | 2.5A-11.5A | 2.0A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404020S | 4.0*4.0*2.0 | 0.33uH-22uH | 6.0mΩ-330mΩ | 2.3A-17.0A | 1.3A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404030S | 4.0*4.0*3.0 | 0.33uH-6.8uH | 4.5mΩ-62mΩ | 5.1A-25.0A | 3.8A-16.0A | - 55 °C + 125 °C | FTC系列.pdf |
Automotive Grade Inductor
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Miniaturized Molded power inductor | FWP201610P | 2.0*1.6*1.0 | 0.24uH-2.2uH | 17mΩ-150mΩ | 1.71A-2.6A | 1.50A-5.0A | - 40 °C + 125 °C | FWP201610P.pdf |
| FWP252010P | 2.5*2.0*1.0 | 0.33uH-4.7uH | 21mΩ-262mΩ | 1.62A-6.6A | 1.22A-4.4A | - 40 °C + 125 °C | FWP252010P.pdf | ||
| FWP252012P | 2.5*2.0*1.2 | 0.47uH-4.7uH | 21mΩ-235mΩ | 1.58A-5.3A | 1.40A-4.6A | - 40 °C + 125 °C | FWP252012P.pdf | ||
| FWP322512A | 3.2*2.5*2.3 | 0.47uH-6.8uH | 19mΩ-210mΩ | 2.1A-7A | 1.2A-5.2A | - 40 °C + 125 °C | FWP322512A.pdf | ||
| Miniaturized Molded power inductor | FXLB201610 | 2.0*1.6*1.0 | 0.24uH-4.7uH | 16mΩ-288mΩ | 1.6A-7.2A | 1.1A-6.3A | - 55 °C + 125 °C | FXLB201610.pdf |
| FXLB252012 | 2.5*2.0*1.2 | 0.33uH-4.7uH | 14mΩ-190mΩ | 2.1A-8.5A | 1.5A-6.0A | - 55 °C + 125 °C | FXLB252012.pdf | ||
| Miniaturized Molded power inductor T-CORE | FTC100765D | 1.0*0.7*0.65 | 1.5uH-2.6uH | 500mΩ-900mΩ | 0.8A-0.9A | 0.3A-0.4A | - 55 °C + 125 °C | FTC系列.pdf |
| FTC121065S | 1.2*1.0*0.65 | 2.2uH | 340mΩ | 0.9A | 1.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160865S | 1.6*0.8*0.65 | 0.22uH-2.2uH | 43mΩ-430mΩ | 1.3A-4.5A | 1.1A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160808S | 1.6*0.8*0.8 | 0.22uH-10uH | 40mΩ-1600mΩ | 0.7A-5.0A | 0.45A-3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141265S | 1.4*1.2*0.65 | 0.33uH-0.47uH | 32mΩ-38mΩ | 3.6A-4.0A | 2.6A-4.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141207S | 1.4*1.2*0.7 | 0.24uH-0.47uH | 28mΩ-38mΩ | 3.5A-4.3A | 3.3A-3.6A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141208S | 1.4*1.2*0.8 | 0.24uH-1.0uH | 27mΩ-77mΩ | 2.5A-5.7A | 2.5A-3.7A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201265S | 2.0*1.2*0.65 | 1.0uH-2.2uH | 86mΩ-230mΩ | 1.5A-2.5A | 1.4A-2.3A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201208S | 2.0*1.2*0.8 | 0.11uH-4.7uH | 12mΩ-325mΩ | 1.4A-9.0A | 1.5A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201210S | 2.0*1.2*1.0 | 0.1uH-10uH | 13mΩ-660mΩ | 1.0A-8.0A | 1.0A-7.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201212S | 2.0*1.2*1.2 | 0.11uH-3.3uH | 6.2mΩ-210mΩ | 1.8A-11.0A | 1.6A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201655S | 2.0*1.6*0.55 | 0.33uH-0.47uH | 41mΩ-53mΩ | 3.0A-3.5A | 3.0A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201665S | 2.0*1.6*0.65 | 1.0uH | 70mΩ | 2.7A | 3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201607S | 2.0*1.6*0.7 | 2.2uH | 175mΩ | 2.0A | 1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201608S | 2.0*1.6*0.8 | 0.22uH-10uH | 19mΩ-800mΩ | 0.9A-5.6A | 0.9A-5.9A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610S | 2.0*1.6*1.0 | 0.1uH-10uH | 12mΩ-580mΩ | 0.7A-8.4A | 1.1A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610D | 2.0*1.6*1.0 | 2.2uH-4.7uH | 125mΩ-276mΩ | 1.7A-3.0A | 1.4A-2.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201612S | 2.0*1.6*1.2 | 0.1uH-3.3uH | 6.0mΩ-165mΩ | 2.3A-11.5A | 2.0A-10.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252075S | 2.5*2.0*0.75 | 2.2uH-10uH | 90mΩ-530mΩ | 0.9A-2.4A | 0.9A-2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252008S | 2.5*2.0*0.8 | 0.47uH-10uH | 27mΩ-600mΩ | 0.9A-5.3A | 1.2A-6.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252010S | 2.5*2.0*1.0 | 0.22uH-22uH | 17mΩ-1300mΩ | 0.9A-7.9A | 0.6A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252012S | 2.5*2.0*1.2 | 0.1uH-10uH | 10mΩ-400mΩ | 1.45A-12.5A | 1.05A-10.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322510S | 3.2*2.5*1.0 | 0.22uH-10uH | 11mΩ-365mΩ | 1.8A-8.0A | 1.8A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322512S | 3.2*2.5*1.2 | 0.1uH-10uH | 7.0mΩ-230mΩ | 1.9A-16.5A | 1.8A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322520S | 3.2*2.5*2.0 | 0.33uH-6.8uH | 9.0mΩ-125mΩ | 2.9A-14A | 2.3A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303010D | 3.0*3.0*1.0 | 6.8uH-10uH | 270mΩ-360mΩ | 1.3A-1.5A | 1.7A-1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303012D | 3.0*3.0*1.2 | 1.0uH-15uH | 27mΩ-380mΩ | 1.6A-5.5A | 1.3A-5.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303015D | 3.0*3.0*1.5 | 0.15uH-22uH | 6.0mΩ-700mΩ | 1.2A-15.0A | 1.0A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303018D | 3.0*3.0*1.8 | 0.22uH-4.7uH | 7.0mΩ-87mΩ | 4.2A-16.0A | 3.0A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303020D | 3.0*3.0*2.0 | 0.15uH-15uH | 5.0mΩ-260mΩ | 2.2A-17.0A | 1.5A-12.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404010S | 4.0*4.0*1.0 | 10uH | 280mΩ | 2.0A | 2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404012S | 4.0*4.0*1.2 | 0.47uH-10uH | 14mΩ-235mΩ | 2.5A-11.5A | 2.0A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404020S | 4.0*4.0*2.0 | 0.33uH-22uH | 6.0mΩ-330mΩ | 2.3A-17.0A | 1.3A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404030S | 4.0*4.0*3.0 | 0.33uH-6.8uH | 4.5mΩ-62mΩ | 5.1A-25.0A | 3.8A-16.0A | - 55 °C + 125 °C | FTC系列.pdf |
Automotive Coupled Inductor
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Miniaturized Molded power inductor | FWP201610P | 2.0*1.6*1.0 | 0.24uH-2.2uH | 17mΩ-150mΩ | 1.71A-2.6A | 1.50A-5.0A | - 40 °C + 125 °C | FWP201610P.pdf |
| FWP252010P | 2.5*2.0*1.0 | 0.33uH-4.7uH | 21mΩ-262mΩ | 1.62A-6.6A | 1.22A-4.4A | - 40 °C + 125 °C | FWP252010P.pdf | ||
| FWP252012P | 2.5*2.0*1.2 | 0.47uH-4.7uH | 21mΩ-235mΩ | 1.58A-5.3A | 1.40A-4.6A | - 40 °C + 125 °C | FWP252012P.pdf | ||
| FWP322512A | 3.2*2.5*2.3 | 0.47uH-6.8uH | 19mΩ-210mΩ | 2.1A-7A | 1.2A-5.2A | - 40 °C + 125 °C | FWP322512A.pdf | ||
| Miniaturized Molded power inductor | FXLB201610 | 2.0*1.6*1.0 | 0.24uH-4.7uH | 16mΩ-288mΩ | 1.6A-7.2A | 1.1A-6.3A | - 55 °C + 125 °C | FXLB201610.pdf |
| FXLB252012 | 2.5*2.0*1.2 | 0.33uH-4.7uH | 14mΩ-190mΩ | 2.1A-8.5A | 1.5A-6.0A | - 55 °C + 125 °C | FXLB252012.pdf | ||
| Miniaturized Molded power inductor T-CORE | FTC100765D | 1.0*0.7*0.65 | 1.5uH-2.6uH | 500mΩ-900mΩ | 0.8A-0.9A | 0.3A-0.4A | - 55 °C + 125 °C | FTC系列.pdf |
| FTC121065S | 1.2*1.0*0.65 | 2.2uH | 340mΩ | 0.9A | 1.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160865S | 1.6*0.8*0.65 | 0.22uH-2.2uH | 43mΩ-430mΩ | 1.3A-4.5A | 1.1A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160808S | 1.6*0.8*0.8 | 0.22uH-10uH | 40mΩ-1600mΩ | 0.7A-5.0A | 0.45A-3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141265S | 1.4*1.2*0.65 | 0.33uH-0.47uH | 32mΩ-38mΩ | 3.6A-4.0A | 2.6A-4.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141207S | 1.4*1.2*0.7 | 0.24uH-0.47uH | 28mΩ-38mΩ | 3.5A-4.3A | 3.3A-3.6A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141208S | 1.4*1.2*0.8 | 0.24uH-1.0uH | 27mΩ-77mΩ | 2.5A-5.7A | 2.5A-3.7A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201265S | 2.0*1.2*0.65 | 1.0uH-2.2uH | 86mΩ-230mΩ | 1.5A-2.5A | 1.4A-2.3A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201208S | 2.0*1.2*0.8 | 0.11uH-4.7uH | 12mΩ-325mΩ | 1.4A-9.0A | 1.5A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201210S | 2.0*1.2*1.0 | 0.1uH-10uH | 13mΩ-660mΩ | 1.0A-8.0A | 1.0A-7.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201212S | 2.0*1.2*1.2 | 0.11uH-3.3uH | 6.2mΩ-210mΩ | 1.8A-11.0A | 1.6A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201655S | 2.0*1.6*0.55 | 0.33uH-0.47uH | 41mΩ-53mΩ | 3.0A-3.5A | 3.0A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201665S | 2.0*1.6*0.65 | 1.0uH | 70mΩ | 2.7A | 3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201607S | 2.0*1.6*0.7 | 2.2uH | 175mΩ | 2.0A | 1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201608S | 2.0*1.6*0.8 | 0.22uH-10uH | 19mΩ-800mΩ | 0.9A-5.6A | 0.9A-5.9A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610S | 2.0*1.6*1.0 | 0.1uH-10uH | 12mΩ-580mΩ | 0.7A-8.4A | 1.1A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610D | 2.0*1.6*1.0 | 2.2uH-4.7uH | 125mΩ-276mΩ | 1.7A-3.0A | 1.4A-2.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201612S | 2.0*1.6*1.2 | 0.1uH-3.3uH | 6.0mΩ-165mΩ | 2.3A-11.5A | 2.0A-10.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252075S | 2.5*2.0*0.75 | 2.2uH-10uH | 90mΩ-530mΩ | 0.9A-2.4A | 0.9A-2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252008S | 2.5*2.0*0.8 | 0.47uH-10uH | 27mΩ-600mΩ | 0.9A-5.3A | 1.2A-6.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252010S | 2.5*2.0*1.0 | 0.22uH-22uH | 17mΩ-1300mΩ | 0.9A-7.9A | 0.6A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252012S | 2.5*2.0*1.2 | 0.1uH-10uH | 10mΩ-400mΩ | 1.45A-12.5A | 1.05A-10.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322510S | 3.2*2.5*1.0 | 0.22uH-10uH | 11mΩ-365mΩ | 1.8A-8.0A | 1.8A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322512S | 3.2*2.5*1.2 | 0.1uH-10uH | 7.0mΩ-230mΩ | 1.9A-16.5A | 1.8A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322520S | 3.2*2.5*2.0 | 0.33uH-6.8uH | 9.0mΩ-125mΩ | 2.9A-14A | 2.3A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303010D | 3.0*3.0*1.0 | 6.8uH-10uH | 270mΩ-360mΩ | 1.3A-1.5A | 1.7A-1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303012D | 3.0*3.0*1.2 | 1.0uH-15uH | 27mΩ-380mΩ | 1.6A-5.5A | 1.3A-5.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303015D | 3.0*3.0*1.5 | 0.15uH-22uH | 6.0mΩ-700mΩ | 1.2A-15.0A | 1.0A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303018D | 3.0*3.0*1.8 | 0.22uH-4.7uH | 7.0mΩ-87mΩ | 4.2A-16.0A | 3.0A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303020D | 3.0*3.0*2.0 | 0.15uH-15uH | 5.0mΩ-260mΩ | 2.2A-17.0A | 1.5A-12.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404010S | 4.0*4.0*1.0 | 10uH | 280mΩ | 2.0A | 2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404012S | 4.0*4.0*1.2 | 0.47uH-10uH | 14mΩ-235mΩ | 2.5A-11.5A | 2.0A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404020S | 4.0*4.0*2.0 | 0.33uH-22uH | 6.0mΩ-330mΩ | 2.3A-17.0A | 1.3A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404030S | 4.0*4.0*3.0 | 0.33uH-6.8uH | 4.5mΩ-62mΩ | 5.1A-25.0A | 3.8A-16.0A | - 55 °C + 125 °C | FTC系列.pdf |
NR Inductor
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Miniaturized Molded power inductor | FWP201610P | 2.0*1.6*1.0 | 0.24uH-2.2uH | 17mΩ-150mΩ | 1.71A-2.6A | 1.50A-5.0A | - 40 °C + 125 °C | FWP201610P.pdf |
| FWP252010P | 2.5*2.0*1.0 | 0.33uH-4.7uH | 21mΩ-262mΩ | 1.62A-6.6A | 1.22A-4.4A | - 40 °C + 125 °C | FWP252010P.pdf | ||
| FWP252012P | 2.5*2.0*1.2 | 0.47uH-4.7uH | 21mΩ-235mΩ | 1.58A-5.3A | 1.40A-4.6A | - 40 °C + 125 °C | FWP252012P.pdf | ||
| FWP322512A | 3.2*2.5*2.3 | 0.47uH-6.8uH | 19mΩ-210mΩ | 2.1A-7A | 1.2A-5.2A | - 40 °C + 125 °C | FWP322512A.pdf | ||
| Miniaturized Molded power inductor | FXLB201610 | 2.0*1.6*1.0 | 0.24uH-4.7uH | 16mΩ-288mΩ | 1.6A-7.2A | 1.1A-6.3A | - 55 °C + 125 °C | FXLB201610.pdf |
| FXLB252012 | 2.5*2.0*1.2 | 0.33uH-4.7uH | 14mΩ-190mΩ | 2.1A-8.5A | 1.5A-6.0A | - 55 °C + 125 °C | FXLB252012.pdf | ||
| Miniaturized Molded power inductor T-CORE | FTC100765D | 1.0*0.7*0.65 | 1.5uH-2.6uH | 500mΩ-900mΩ | 0.8A-0.9A | 0.3A-0.4A | - 55 °C + 125 °C | FTC系列.pdf |
| FTC121065S | 1.2*1.0*0.65 | 2.2uH | 340mΩ | 0.9A | 1.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160865S | 1.6*0.8*0.65 | 0.22uH-2.2uH | 43mΩ-430mΩ | 1.3A-4.5A | 1.1A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160808S | 1.6*0.8*0.8 | 0.22uH-10uH | 40mΩ-1600mΩ | 0.7A-5.0A | 0.45A-3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141265S | 1.4*1.2*0.65 | 0.33uH-0.47uH | 32mΩ-38mΩ | 3.6A-4.0A | 2.6A-4.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141207S | 1.4*1.2*0.7 | 0.24uH-0.47uH | 28mΩ-38mΩ | 3.5A-4.3A | 3.3A-3.6A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141208S | 1.4*1.2*0.8 | 0.24uH-1.0uH | 27mΩ-77mΩ | 2.5A-5.7A | 2.5A-3.7A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201265S | 2.0*1.2*0.65 | 1.0uH-2.2uH | 86mΩ-230mΩ | 1.5A-2.5A | 1.4A-2.3A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201208S | 2.0*1.2*0.8 | 0.11uH-4.7uH | 12mΩ-325mΩ | 1.4A-9.0A | 1.5A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201210S | 2.0*1.2*1.0 | 0.1uH-10uH | 13mΩ-660mΩ | 1.0A-8.0A | 1.0A-7.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201212S | 2.0*1.2*1.2 | 0.11uH-3.3uH | 6.2mΩ-210mΩ | 1.8A-11.0A | 1.6A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201655S | 2.0*1.6*0.55 | 0.33uH-0.47uH | 41mΩ-53mΩ | 3.0A-3.5A | 3.0A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201665S | 2.0*1.6*0.65 | 1.0uH | 70mΩ | 2.7A | 3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201607S | 2.0*1.6*0.7 | 2.2uH | 175mΩ | 2.0A | 1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201608S | 2.0*1.6*0.8 | 0.22uH-10uH | 19mΩ-800mΩ | 0.9A-5.6A | 0.9A-5.9A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610S | 2.0*1.6*1.0 | 0.1uH-10uH | 12mΩ-580mΩ | 0.7A-8.4A | 1.1A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610D | 2.0*1.6*1.0 | 2.2uH-4.7uH | 125mΩ-276mΩ | 1.7A-3.0A | 1.4A-2.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201612S | 2.0*1.6*1.2 | 0.1uH-3.3uH | 6.0mΩ-165mΩ | 2.3A-11.5A | 2.0A-10.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252075S | 2.5*2.0*0.75 | 2.2uH-10uH | 90mΩ-530mΩ | 0.9A-2.4A | 0.9A-2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252008S | 2.5*2.0*0.8 | 0.47uH-10uH | 27mΩ-600mΩ | 0.9A-5.3A | 1.2A-6.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252010S | 2.5*2.0*1.0 | 0.22uH-22uH | 17mΩ-1300mΩ | 0.9A-7.9A | 0.6A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252012S | 2.5*2.0*1.2 | 0.1uH-10uH | 10mΩ-400mΩ | 1.45A-12.5A | 1.05A-10.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322510S | 3.2*2.5*1.0 | 0.22uH-10uH | 11mΩ-365mΩ | 1.8A-8.0A | 1.8A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322512S | 3.2*2.5*1.2 | 0.1uH-10uH | 7.0mΩ-230mΩ | 1.9A-16.5A | 1.8A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322520S | 3.2*2.5*2.0 | 0.33uH-6.8uH | 9.0mΩ-125mΩ | 2.9A-14A | 2.3A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303010D | 3.0*3.0*1.0 | 6.8uH-10uH | 270mΩ-360mΩ | 1.3A-1.5A | 1.7A-1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303012D | 3.0*3.0*1.2 | 1.0uH-15uH | 27mΩ-380mΩ | 1.6A-5.5A | 1.3A-5.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303015D | 3.0*3.0*1.5 | 0.15uH-22uH | 6.0mΩ-700mΩ | 1.2A-15.0A | 1.0A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303018D | 3.0*3.0*1.8 | 0.22uH-4.7uH | 7.0mΩ-87mΩ | 4.2A-16.0A | 3.0A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303020D | 3.0*3.0*2.0 | 0.15uH-15uH | 5.0mΩ-260mΩ | 2.2A-17.0A | 1.5A-12.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404010S | 4.0*4.0*1.0 | 10uH | 280mΩ | 2.0A | 2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404012S | 4.0*4.0*1.2 | 0.47uH-10uH | 14mΩ-235mΩ | 2.5A-11.5A | 2.0A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404020S | 4.0*4.0*2.0 | 0.33uH-22uH | 6.0mΩ-330mΩ | 2.3A-17.0A | 1.3A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404030S | 4.0*4.0*3.0 | 0.33uH-6.8uH | 4.5mΩ-62mΩ | 5.1A-25.0A | 3.8A-16.0A | - 55 °C + 125 °C | FTC系列.pdf |
Common mode choke
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Miniaturized Molded power inductor | FWP201610P | 2.0*1.6*1.0 | 0.24uH-2.2uH | 17mΩ-150mΩ | 1.71A-2.6A | 1.50A-5.0A | - 40 °C + 125 °C | FWP201610P.pdf |
| FWP252010P | 2.5*2.0*1.0 | 0.33uH-4.7uH | 21mΩ-262mΩ | 1.62A-6.6A | 1.22A-4.4A | - 40 °C + 125 °C | FWP252010P.pdf | ||
| FWP252012P | 2.5*2.0*1.2 | 0.47uH-4.7uH | 21mΩ-235mΩ | 1.58A-5.3A | 1.40A-4.6A | - 40 °C + 125 °C | FWP252012P.pdf | ||
| FWP322512A | 3.2*2.5*2.3 | 0.47uH-6.8uH | 19mΩ-210mΩ | 2.1A-7A | 1.2A-5.2A | - 40 °C + 125 °C | FWP322512A.pdf | ||
| Miniaturized Molded power inductor | FXLB201610 | 2.0*1.6*1.0 | 0.24uH-4.7uH | 16mΩ-288mΩ | 1.6A-7.2A | 1.1A-6.3A | - 55 °C + 125 °C | FXLB201610.pdf |
| FXLB252012 | 2.5*2.0*1.2 | 0.33uH-4.7uH | 14mΩ-190mΩ | 2.1A-8.5A | 1.5A-6.0A | - 55 °C + 125 °C | FXLB252012.pdf | ||
| Miniaturized Molded power inductor T-CORE | FTC100765D | 1.0*0.7*0.65 | 1.5uH-2.6uH | 500mΩ-900mΩ | 0.8A-0.9A | 0.3A-0.4A | - 55 °C + 125 °C | FTC系列.pdf |
| FTC121065S | 1.2*1.0*0.65 | 2.2uH | 340mΩ | 0.9A | 1.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160865S | 1.6*0.8*0.65 | 0.22uH-2.2uH | 43mΩ-430mΩ | 1.3A-4.5A | 1.1A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160808S | 1.6*0.8*0.8 | 0.22uH-10uH | 40mΩ-1600mΩ | 0.7A-5.0A | 0.45A-3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141265S | 1.4*1.2*0.65 | 0.33uH-0.47uH | 32mΩ-38mΩ | 3.6A-4.0A | 2.6A-4.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141207S | 1.4*1.2*0.7 | 0.24uH-0.47uH | 28mΩ-38mΩ | 3.5A-4.3A | 3.3A-3.6A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141208S | 1.4*1.2*0.8 | 0.24uH-1.0uH | 27mΩ-77mΩ | 2.5A-5.7A | 2.5A-3.7A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201265S | 2.0*1.2*0.65 | 1.0uH-2.2uH | 86mΩ-230mΩ | 1.5A-2.5A | 1.4A-2.3A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201208S | 2.0*1.2*0.8 | 0.11uH-4.7uH | 12mΩ-325mΩ | 1.4A-9.0A | 1.5A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201210S | 2.0*1.2*1.0 | 0.1uH-10uH | 13mΩ-660mΩ | 1.0A-8.0A | 1.0A-7.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201212S | 2.0*1.2*1.2 | 0.11uH-3.3uH | 6.2mΩ-210mΩ | 1.8A-11.0A | 1.6A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201655S | 2.0*1.6*0.55 | 0.33uH-0.47uH | 41mΩ-53mΩ | 3.0A-3.5A | 3.0A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201665S | 2.0*1.6*0.65 | 1.0uH | 70mΩ | 2.7A | 3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201607S | 2.0*1.6*0.7 | 2.2uH | 175mΩ | 2.0A | 1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201608S | 2.0*1.6*0.8 | 0.22uH-10uH | 19mΩ-800mΩ | 0.9A-5.6A | 0.9A-5.9A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610S | 2.0*1.6*1.0 | 0.1uH-10uH | 12mΩ-580mΩ | 0.7A-8.4A | 1.1A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610D | 2.0*1.6*1.0 | 2.2uH-4.7uH | 125mΩ-276mΩ | 1.7A-3.0A | 1.4A-2.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201612S | 2.0*1.6*1.2 | 0.1uH-3.3uH | 6.0mΩ-165mΩ | 2.3A-11.5A | 2.0A-10.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252075S | 2.5*2.0*0.75 | 2.2uH-10uH | 90mΩ-530mΩ | 0.9A-2.4A | 0.9A-2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252008S | 2.5*2.0*0.8 | 0.47uH-10uH | 27mΩ-600mΩ | 0.9A-5.3A | 1.2A-6.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252010S | 2.5*2.0*1.0 | 0.22uH-22uH | 17mΩ-1300mΩ | 0.9A-7.9A | 0.6A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252012S | 2.5*2.0*1.2 | 0.1uH-10uH | 10mΩ-400mΩ | 1.45A-12.5A | 1.05A-10.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322510S | 3.2*2.5*1.0 | 0.22uH-10uH | 11mΩ-365mΩ | 1.8A-8.0A | 1.8A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322512S | 3.2*2.5*1.2 | 0.1uH-10uH | 7.0mΩ-230mΩ | 1.9A-16.5A | 1.8A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322520S | 3.2*2.5*2.0 | 0.33uH-6.8uH | 9.0mΩ-125mΩ | 2.9A-14A | 2.3A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303010D | 3.0*3.0*1.0 | 6.8uH-10uH | 270mΩ-360mΩ | 1.3A-1.5A | 1.7A-1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303012D | 3.0*3.0*1.2 | 1.0uH-15uH | 27mΩ-380mΩ | 1.6A-5.5A | 1.3A-5.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303015D | 3.0*3.0*1.5 | 0.15uH-22uH | 6.0mΩ-700mΩ | 1.2A-15.0A | 1.0A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303018D | 3.0*3.0*1.8 | 0.22uH-4.7uH | 7.0mΩ-87mΩ | 4.2A-16.0A | 3.0A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303020D | 3.0*3.0*2.0 | 0.15uH-15uH | 5.0mΩ-260mΩ | 2.2A-17.0A | 1.5A-12.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404010S | 4.0*4.0*1.0 | 10uH | 280mΩ | 2.0A | 2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404012S | 4.0*4.0*1.2 | 0.47uH-10uH | 14mΩ-235mΩ | 2.5A-11.5A | 2.0A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404020S | 4.0*4.0*2.0 | 0.33uH-22uH | 6.0mΩ-330mΩ | 2.3A-17.0A | 1.3A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404030S | 4.0*4.0*3.0 | 0.33uH-6.8uH | 4.5mΩ-62mΩ | 5.1A-25.0A | 3.8A-16.0A | - 55 °C + 125 °C | FTC系列.pdf |
Power Inductor
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Miniaturized Molded power inductor | FWP201610P | 2.0*1.6*1.0 | 0.24uH-2.2uH | 17mΩ-150mΩ | 1.71A-2.6A | 1.50A-5.0A | - 40 °C + 125 °C | FWP201610P.pdf |
| FWP252010P | 2.5*2.0*1.0 | 0.33uH-4.7uH | 21mΩ-262mΩ | 1.62A-6.6A | 1.22A-4.4A | - 40 °C + 125 °C | FWP252010P.pdf | ||
| FWP252012P | 2.5*2.0*1.2 | 0.47uH-4.7uH | 21mΩ-235mΩ | 1.58A-5.3A | 1.40A-4.6A | - 40 °C + 125 °C | FWP252012P.pdf | ||
| FWP322512A | 3.2*2.5*2.3 | 0.47uH-6.8uH | 19mΩ-210mΩ | 2.1A-7A | 1.2A-5.2A | - 40 °C + 125 °C | FWP322512A.pdf | ||
| Miniaturized Molded power inductor | FXLB201610 | 2.0*1.6*1.0 | 0.24uH-4.7uH | 16mΩ-288mΩ | 1.6A-7.2A | 1.1A-6.3A | - 55 °C + 125 °C | FXLB201610.pdf |
| FXLB252012 | 2.5*2.0*1.2 | 0.33uH-4.7uH | 14mΩ-190mΩ | 2.1A-8.5A | 1.5A-6.0A | - 55 °C + 125 °C | FXLB252012.pdf | ||
| Miniaturized Molded power inductor T-CORE | FTC100765D | 1.0*0.7*0.65 | 1.5uH-2.6uH | 500mΩ-900mΩ | 0.8A-0.9A | 0.3A-0.4A | - 55 °C + 125 °C | FTC系列.pdf |
| FTC121065S | 1.2*1.0*0.65 | 2.2uH | 340mΩ | 0.9A | 1.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160865S | 1.6*0.8*0.65 | 0.22uH-2.2uH | 43mΩ-430mΩ | 1.3A-4.5A | 1.1A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160808S | 1.6*0.8*0.8 | 0.22uH-10uH | 40mΩ-1600mΩ | 0.7A-5.0A | 0.45A-3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141265S | 1.4*1.2*0.65 | 0.33uH-0.47uH | 32mΩ-38mΩ | 3.6A-4.0A | 2.6A-4.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141207S | 1.4*1.2*0.7 | 0.24uH-0.47uH | 28mΩ-38mΩ | 3.5A-4.3A | 3.3A-3.6A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141208S | 1.4*1.2*0.8 | 0.24uH-1.0uH | 27mΩ-77mΩ | 2.5A-5.7A | 2.5A-3.7A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201265S | 2.0*1.2*0.65 | 1.0uH-2.2uH | 86mΩ-230mΩ | 1.5A-2.5A | 1.4A-2.3A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201208S | 2.0*1.2*0.8 | 0.11uH-4.7uH | 12mΩ-325mΩ | 1.4A-9.0A | 1.5A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201210S | 2.0*1.2*1.0 | 0.1uH-10uH | 13mΩ-660mΩ | 1.0A-8.0A | 1.0A-7.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201212S | 2.0*1.2*1.2 | 0.11uH-3.3uH | 6.2mΩ-210mΩ | 1.8A-11.0A | 1.6A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201655S | 2.0*1.6*0.55 | 0.33uH-0.47uH | 41mΩ-53mΩ | 3.0A-3.5A | 3.0A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201665S | 2.0*1.6*0.65 | 1.0uH | 70mΩ | 2.7A | 3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201607S | 2.0*1.6*0.7 | 2.2uH | 175mΩ | 2.0A | 1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201608S | 2.0*1.6*0.8 | 0.22uH-10uH | 19mΩ-800mΩ | 0.9A-5.6A | 0.9A-5.9A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610S | 2.0*1.6*1.0 | 0.1uH-10uH | 12mΩ-580mΩ | 0.7A-8.4A | 1.1A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610D | 2.0*1.6*1.0 | 2.2uH-4.7uH | 125mΩ-276mΩ | 1.7A-3.0A | 1.4A-2.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201612S | 2.0*1.6*1.2 | 0.1uH-3.3uH | 6.0mΩ-165mΩ | 2.3A-11.5A | 2.0A-10.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252075S | 2.5*2.0*0.75 | 2.2uH-10uH | 90mΩ-530mΩ | 0.9A-2.4A | 0.9A-2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252008S | 2.5*2.0*0.8 | 0.47uH-10uH | 27mΩ-600mΩ | 0.9A-5.3A | 1.2A-6.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252010S | 2.5*2.0*1.0 | 0.22uH-22uH | 17mΩ-1300mΩ | 0.9A-7.9A | 0.6A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252012S | 2.5*2.0*1.2 | 0.1uH-10uH | 10mΩ-400mΩ | 1.45A-12.5A | 1.05A-10.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322510S | 3.2*2.5*1.0 | 0.22uH-10uH | 11mΩ-365mΩ | 1.8A-8.0A | 1.8A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322512S | 3.2*2.5*1.2 | 0.1uH-10uH | 7.0mΩ-230mΩ | 1.9A-16.5A | 1.8A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322520S | 3.2*2.5*2.0 | 0.33uH-6.8uH | 9.0mΩ-125mΩ | 2.9A-14A | 2.3A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303010D | 3.0*3.0*1.0 | 6.8uH-10uH | 270mΩ-360mΩ | 1.3A-1.5A | 1.7A-1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303012D | 3.0*3.0*1.2 | 1.0uH-15uH | 27mΩ-380mΩ | 1.6A-5.5A | 1.3A-5.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303015D | 3.0*3.0*1.5 | 0.15uH-22uH | 6.0mΩ-700mΩ | 1.2A-15.0A | 1.0A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303018D | 3.0*3.0*1.8 | 0.22uH-4.7uH | 7.0mΩ-87mΩ | 4.2A-16.0A | 3.0A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303020D | 3.0*3.0*2.0 | 0.15uH-15uH | 5.0mΩ-260mΩ | 2.2A-17.0A | 1.5A-12.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404010S | 4.0*4.0*1.0 | 10uH | 280mΩ | 2.0A | 2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404012S | 4.0*4.0*1.2 | 0.47uH-10uH | 14mΩ-235mΩ | 2.5A-11.5A | 2.0A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404020S | 4.0*4.0*2.0 | 0.33uH-22uH | 6.0mΩ-330mΩ | 2.3A-17.0A | 1.3A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404030S | 4.0*4.0*3.0 | 0.33uH-6.8uH | 4.5mΩ-62mΩ | 5.1A-25.0A | 3.8A-16.0A | - 55 °C + 125 °C | FTC系列.pdf |
Miniaturized Molded
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Miniaturized Molded power inductor | FWP201610P | 2.0*1.6*1.0 | 0.24uH-2.2uH | 17mΩ-150mΩ | 1.71A-2.6A | 1.50A-5.0A | - 40 °C + 125 °C | FWP201610P.pdf |
| FWP252010P | 2.5*2.0*1.0 | 0.33uH-4.7uH | 21mΩ-262mΩ | 1.62A-6.6A | 1.22A-4.4A | - 40 °C + 125 °C | FWP252010P.pdf | ||
| FWP252012P | 2.5*2.0*1.2 | 0.47uH-4.7uH | 21mΩ-235mΩ | 1.58A-5.3A | 1.40A-4.6A | - 40 °C + 125 °C | FWP252012P.pdf | ||
| FWP322512A | 3.2*2.5*2.3 | 0.47uH-6.8uH | 19mΩ-210mΩ | 2.1A-7A | 1.2A-5.2A | - 40 °C + 125 °C | FWP322512A.pdf | ||
| Miniaturized Molded power inductor | FXLB201610 | 2.0*1.6*1.0 | 0.24uH-4.7uH | 16mΩ-288mΩ | 1.6A-7.2A | 1.1A-6.3A | - 55 °C + 125 °C | FXLB201610.pdf |
| FXLB252012 | 2.5*2.0*1.2 | 0.33uH-4.7uH | 14mΩ-190mΩ | 2.1A-8.5A | 1.5A-6.0A | - 55 °C + 125 °C | FXLB252012.pdf | ||
| Miniaturized Molded power inductor T-CORE | FTC100765D | 1.0*0.7*0.65 | 1.5uH-2.6uH | 500mΩ-900mΩ | 0.8A-0.9A | 0.3A-0.4A | - 55 °C + 125 °C | FTC系列.pdf |
| FTC121065S | 1.2*1.0*0.65 | 2.2uH | 340mΩ | 0.9A | 1.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160865S | 1.6*0.8*0.65 | 0.22uH-2.2uH | 43mΩ-430mΩ | 1.3A-4.5A | 1.1A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160808S | 1.6*0.8*0.8 | 0.22uH-10uH | 40mΩ-1600mΩ | 0.7A-5.0A | 0.45A-3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141265S | 1.4*1.2*0.65 | 0.33uH-0.47uH | 32mΩ-38mΩ | 3.6A-4.0A | 2.6A-4.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141207S | 1.4*1.2*0.7 | 0.24uH-0.47uH | 28mΩ-38mΩ | 3.5A-4.3A | 3.3A-3.6A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141208S | 1.4*1.2*0.8 | 0.24uH-1.0uH | 27mΩ-77mΩ | 2.5A-5.7A | 2.5A-3.7A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201265S | 2.0*1.2*0.65 | 1.0uH-2.2uH | 86mΩ-230mΩ | 1.5A-2.5A | 1.4A-2.3A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201208S | 2.0*1.2*0.8 | 0.11uH-4.7uH | 12mΩ-325mΩ | 1.4A-9.0A | 1.5A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201210S | 2.0*1.2*1.0 | 0.1uH-10uH | 13mΩ-660mΩ | 1.0A-8.0A | 1.0A-7.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201212S | 2.0*1.2*1.2 | 0.11uH-3.3uH | 6.2mΩ-210mΩ | 1.8A-11.0A | 1.6A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201655S | 2.0*1.6*0.55 | 0.33uH-0.47uH | 41mΩ-53mΩ | 3.0A-3.5A | 3.0A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201665S | 2.0*1.6*0.65 | 1.0uH | 70mΩ | 2.7A | 3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201607S | 2.0*1.6*0.7 | 2.2uH | 175mΩ | 2.0A | 1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201608S | 2.0*1.6*0.8 | 0.22uH-10uH | 19mΩ-800mΩ | 0.9A-5.6A | 0.9A-5.9A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610S | 2.0*1.6*1.0 | 0.1uH-10uH | 12mΩ-580mΩ | 0.7A-8.4A | 1.1A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610D | 2.0*1.6*1.0 | 2.2uH-4.7uH | 125mΩ-276mΩ | 1.7A-3.0A | 1.4A-2.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201612S | 2.0*1.6*1.2 | 0.1uH-3.3uH | 6.0mΩ-165mΩ | 2.3A-11.5A | 2.0A-10.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252075S | 2.5*2.0*0.75 | 2.2uH-10uH | 90mΩ-530mΩ | 0.9A-2.4A | 0.9A-2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252008S | 2.5*2.0*0.8 | 0.47uH-10uH | 27mΩ-600mΩ | 0.9A-5.3A | 1.2A-6.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252010S | 2.5*2.0*1.0 | 0.22uH-22uH | 17mΩ-1300mΩ | 0.9A-7.9A | 0.6A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252012S | 2.5*2.0*1.2 | 0.1uH-10uH | 10mΩ-400mΩ | 1.45A-12.5A | 1.05A-10.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322510S | 3.2*2.5*1.0 | 0.22uH-10uH | 11mΩ-365mΩ | 1.8A-8.0A | 1.8A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322512S | 3.2*2.5*1.2 | 0.1uH-10uH | 7.0mΩ-230mΩ | 1.9A-16.5A | 1.8A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322520S | 3.2*2.5*2.0 | 0.33uH-6.8uH | 9.0mΩ-125mΩ | 2.9A-14A | 2.3A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303010D | 3.0*3.0*1.0 | 6.8uH-10uH | 270mΩ-360mΩ | 1.3A-1.5A | 1.7A-1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303012D | 3.0*3.0*1.2 | 1.0uH-15uH | 27mΩ-380mΩ | 1.6A-5.5A | 1.3A-5.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303015D | 3.0*3.0*1.5 | 0.15uH-22uH | 6.0mΩ-700mΩ | 1.2A-15.0A | 1.0A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303018D | 3.0*3.0*1.8 | 0.22uH-4.7uH | 7.0mΩ-87mΩ | 4.2A-16.0A | 3.0A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303020D | 3.0*3.0*2.0 | 0.15uH-15uH | 5.0mΩ-260mΩ | 2.2A-17.0A | 1.5A-12.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404010S | 4.0*4.0*1.0 | 10uH | 280mΩ | 2.0A | 2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404012S | 4.0*4.0*1.2 | 0.47uH-10uH | 14mΩ-235mΩ | 2.5A-11.5A | 2.0A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404020S | 4.0*4.0*2.0 | 0.33uH-22uH | 6.0mΩ-330mΩ | 2.3A-17.0A | 1.3A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404030S | 4.0*4.0*3.0 | 0.33uH-6.8uH | 4.5mΩ-62mΩ | 5.1A-25.0A | 3.8A-16.0A | - 55 °C + 125 °C | FTC系列.pdf |
Wire Wound Chip Ferrite
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Miniaturized Molded power inductor | FWP201610P | 2.0*1.6*1.0 | 0.24uH-2.2uH | 17mΩ-150mΩ | 1.71A-2.6A | 1.50A-5.0A | - 40 °C + 125 °C | FWP201610P.pdf |
| FWP252010P | 2.5*2.0*1.0 | 0.33uH-4.7uH | 21mΩ-262mΩ | 1.62A-6.6A | 1.22A-4.4A | - 40 °C + 125 °C | FWP252010P.pdf | ||
| FWP252012P | 2.5*2.0*1.2 | 0.47uH-4.7uH | 21mΩ-235mΩ | 1.58A-5.3A | 1.40A-4.6A | - 40 °C + 125 °C | FWP252012P.pdf | ||
| FWP322512A | 3.2*2.5*2.3 | 0.47uH-6.8uH | 19mΩ-210mΩ | 2.1A-7A | 1.2A-5.2A | - 40 °C + 125 °C | FWP322512A.pdf | ||
| Miniaturized Molded power inductor | FXLB201610 | 2.0*1.6*1.0 | 0.24uH-4.7uH | 16mΩ-288mΩ | 1.6A-7.2A | 1.1A-6.3A | - 55 °C + 125 °C | FXLB201610.pdf |
| FXLB252012 | 2.5*2.0*1.2 | 0.33uH-4.7uH | 14mΩ-190mΩ | 2.1A-8.5A | 1.5A-6.0A | - 55 °C + 125 °C | FXLB252012.pdf | ||
| Miniaturized Molded power inductor T-CORE | FTC100765D | 1.0*0.7*0.65 | 1.5uH-2.6uH | 500mΩ-900mΩ | 0.8A-0.9A | 0.3A-0.4A | - 55 °C + 125 °C | FTC系列.pdf |
| FTC121065S | 1.2*1.0*0.65 | 2.2uH | 340mΩ | 0.9A | 1.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160865S | 1.6*0.8*0.65 | 0.22uH-2.2uH | 43mΩ-430mΩ | 1.3A-4.5A | 1.1A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160808S | 1.6*0.8*0.8 | 0.22uH-10uH | 40mΩ-1600mΩ | 0.7A-5.0A | 0.45A-3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141265S | 1.4*1.2*0.65 | 0.33uH-0.47uH | 32mΩ-38mΩ | 3.6A-4.0A | 2.6A-4.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141207S | 1.4*1.2*0.7 | 0.24uH-0.47uH | 28mΩ-38mΩ | 3.5A-4.3A | 3.3A-3.6A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141208S | 1.4*1.2*0.8 | 0.24uH-1.0uH | 27mΩ-77mΩ | 2.5A-5.7A | 2.5A-3.7A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201265S | 2.0*1.2*0.65 | 1.0uH-2.2uH | 86mΩ-230mΩ | 1.5A-2.5A | 1.4A-2.3A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201208S | 2.0*1.2*0.8 | 0.11uH-4.7uH | 12mΩ-325mΩ | 1.4A-9.0A | 1.5A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201210S | 2.0*1.2*1.0 | 0.1uH-10uH | 13mΩ-660mΩ | 1.0A-8.0A | 1.0A-7.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201212S | 2.0*1.2*1.2 | 0.11uH-3.3uH | 6.2mΩ-210mΩ | 1.8A-11.0A | 1.6A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201655S | 2.0*1.6*0.55 | 0.33uH-0.47uH | 41mΩ-53mΩ | 3.0A-3.5A | 3.0A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201665S | 2.0*1.6*0.65 | 1.0uH | 70mΩ | 2.7A | 3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201607S | 2.0*1.6*0.7 | 2.2uH | 175mΩ | 2.0A | 1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201608S | 2.0*1.6*0.8 | 0.22uH-10uH | 19mΩ-800mΩ | 0.9A-5.6A | 0.9A-5.9A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610S | 2.0*1.6*1.0 | 0.1uH-10uH | 12mΩ-580mΩ | 0.7A-8.4A | 1.1A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610D | 2.0*1.6*1.0 | 2.2uH-4.7uH | 125mΩ-276mΩ | 1.7A-3.0A | 1.4A-2.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201612S | 2.0*1.6*1.2 | 0.1uH-3.3uH | 6.0mΩ-165mΩ | 2.3A-11.5A | 2.0A-10.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252075S | 2.5*2.0*0.75 | 2.2uH-10uH | 90mΩ-530mΩ | 0.9A-2.4A | 0.9A-2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252008S | 2.5*2.0*0.8 | 0.47uH-10uH | 27mΩ-600mΩ | 0.9A-5.3A | 1.2A-6.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252010S | 2.5*2.0*1.0 | 0.22uH-22uH | 17mΩ-1300mΩ | 0.9A-7.9A | 0.6A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252012S | 2.5*2.0*1.2 | 0.1uH-10uH | 10mΩ-400mΩ | 1.45A-12.5A | 1.05A-10.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322510S | 3.2*2.5*1.0 | 0.22uH-10uH | 11mΩ-365mΩ | 1.8A-8.0A | 1.8A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322512S | 3.2*2.5*1.2 | 0.1uH-10uH | 7.0mΩ-230mΩ | 1.9A-16.5A | 1.8A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322520S | 3.2*2.5*2.0 | 0.33uH-6.8uH | 9.0mΩ-125mΩ | 2.9A-14A | 2.3A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303010D | 3.0*3.0*1.0 | 6.8uH-10uH | 270mΩ-360mΩ | 1.3A-1.5A | 1.7A-1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303012D | 3.0*3.0*1.2 | 1.0uH-15uH | 27mΩ-380mΩ | 1.6A-5.5A | 1.3A-5.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303015D | 3.0*3.0*1.5 | 0.15uH-22uH | 6.0mΩ-700mΩ | 1.2A-15.0A | 1.0A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303018D | 3.0*3.0*1.8 | 0.22uH-4.7uH | 7.0mΩ-87mΩ | 4.2A-16.0A | 3.0A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303020D | 3.0*3.0*2.0 | 0.15uH-15uH | 5.0mΩ-260mΩ | 2.2A-17.0A | 1.5A-12.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404010S | 4.0*4.0*1.0 | 10uH | 280mΩ | 2.0A | 2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404012S | 4.0*4.0*1.2 | 0.47uH-10uH | 14mΩ-235mΩ | 2.5A-11.5A | 2.0A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404020S | 4.0*4.0*2.0 | 0.33uH-22uH | 6.0mΩ-330mΩ | 2.3A-17.0A | 1.3A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404030S | 4.0*4.0*3.0 | 0.33uH-6.8uH | 4.5mΩ-62mΩ | 5.1A-25.0A | 3.8A-16.0A | - 55 °C + 125 °C | FTC系列.pdf |
Molded power Inductor
| Product picture | Product category | Series | SIZE(mm*mm*mm) | Inductance | DCR | lsat | lrmt | temperature | Specifications |
|---|---|---|---|---|---|---|---|---|---|
| Miniaturized Molded power inductor | FWP201610P | 2.0*1.6*1.0 | 0.24uH-2.2uH | 17mΩ-150mΩ | 1.71A-2.6A | 1.50A-5.0A | - 40 °C + 125 °C | FWP201610P.pdf |
| FWP252010P | 2.5*2.0*1.0 | 0.33uH-4.7uH | 21mΩ-262mΩ | 1.62A-6.6A | 1.22A-4.4A | - 40 °C + 125 °C | FWP252010P.pdf | ||
| FWP252012P | 2.5*2.0*1.2 | 0.47uH-4.7uH | 21mΩ-235mΩ | 1.58A-5.3A | 1.40A-4.6A | - 40 °C + 125 °C | FWP252012P.pdf | ||
| FWP322512A | 3.2*2.5*2.3 | 0.47uH-6.8uH | 19mΩ-210mΩ | 2.1A-7A | 1.2A-5.2A | - 40 °C + 125 °C | FWP322512A.pdf | ||
| Miniaturized Molded power inductor | FXLB201610 | 2.0*1.6*1.0 | 0.24uH-4.7uH | 16mΩ-288mΩ | 1.6A-7.2A | 1.1A-6.3A | - 55 °C + 125 °C | FXLB201610.pdf |
| FXLB252012 | 2.5*2.0*1.2 | 0.33uH-4.7uH | 14mΩ-190mΩ | 2.1A-8.5A | 1.5A-6.0A | - 55 °C + 125 °C | FXLB252012.pdf | ||
| Miniaturized Molded power inductor T-CORE | FTC100765D | 1.0*0.7*0.65 | 1.5uH-2.6uH | 500mΩ-900mΩ | 0.8A-0.9A | 0.3A-0.4A | - 55 °C + 125 °C | FTC系列.pdf |
| FTC121065S | 1.2*1.0*0.65 | 2.2uH | 340mΩ | 0.9A | 1.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160865S | 1.6*0.8*0.65 | 0.22uH-2.2uH | 43mΩ-430mΩ | 1.3A-4.5A | 1.1A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC160808S | 1.6*0.8*0.8 | 0.22uH-10uH | 40mΩ-1600mΩ | 0.7A-5.0A | 0.45A-3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141265S | 1.4*1.2*0.65 | 0.33uH-0.47uH | 32mΩ-38mΩ | 3.6A-4.0A | 2.6A-4.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141207S | 1.4*1.2*0.7 | 0.24uH-0.47uH | 28mΩ-38mΩ | 3.5A-4.3A | 3.3A-3.6A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC141208S | 1.4*1.2*0.8 | 0.24uH-1.0uH | 27mΩ-77mΩ | 2.5A-5.7A | 2.5A-3.7A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201265S | 2.0*1.2*0.65 | 1.0uH-2.2uH | 86mΩ-230mΩ | 1.5A-2.5A | 1.4A-2.3A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201208S | 2.0*1.2*0.8 | 0.11uH-4.7uH | 12mΩ-325mΩ | 1.4A-9.0A | 1.5A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201210S | 2.0*1.2*1.0 | 0.1uH-10uH | 13mΩ-660mΩ | 1.0A-8.0A | 1.0A-7.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201212S | 2.0*1.2*1.2 | 0.11uH-3.3uH | 6.2mΩ-210mΩ | 1.8A-11.0A | 1.6A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201655S | 2.0*1.6*0.55 | 0.33uH-0.47uH | 41mΩ-53mΩ | 3.0A-3.5A | 3.0A-3.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201665S | 2.0*1.6*0.65 | 1.0uH | 70mΩ | 2.7A | 3.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201607S | 2.0*1.6*0.7 | 2.2uH | 175mΩ | 2.0A | 1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201608S | 2.0*1.6*0.8 | 0.22uH-10uH | 19mΩ-800mΩ | 0.9A-5.6A | 0.9A-5.9A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610S | 2.0*1.6*1.0 | 0.1uH-10uH | 12mΩ-580mΩ | 0.7A-8.4A | 1.1A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201610D | 2.0*1.6*1.0 | 2.2uH-4.7uH | 125mΩ-276mΩ | 1.7A-3.0A | 1.4A-2.2A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC201612S | 2.0*1.6*1.2 | 0.1uH-3.3uH | 6.0mΩ-165mΩ | 2.3A-11.5A | 2.0A-10.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252075S | 2.5*2.0*0.75 | 2.2uH-10uH | 90mΩ-530mΩ | 0.9A-2.4A | 0.9A-2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252008S | 2.5*2.0*0.8 | 0.47uH-10uH | 27mΩ-600mΩ | 0.9A-5.3A | 1.2A-6.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252010S | 2.5*2.0*1.0 | 0.22uH-22uH | 17mΩ-1300mΩ | 0.9A-7.9A | 0.6A-6.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC252012S | 2.5*2.0*1.2 | 0.1uH-10uH | 10mΩ-400mΩ | 1.45A-12.5A | 1.05A-10.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322510S | 3.2*2.5*1.0 | 0.22uH-10uH | 11mΩ-365mΩ | 1.8A-8.0A | 1.8A-8.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322512S | 3.2*2.5*1.2 | 0.1uH-10uH | 7.0mΩ-230mΩ | 1.9A-16.5A | 1.8A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC322520S | 3.2*2.5*2.0 | 0.33uH-6.8uH | 9.0mΩ-125mΩ | 2.9A-14A | 2.3A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303010D | 3.0*3.0*1.0 | 6.8uH-10uH | 270mΩ-360mΩ | 1.3A-1.5A | 1.7A-1.8A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303012D | 3.0*3.0*1.2 | 1.0uH-15uH | 27mΩ-380mΩ | 1.6A-5.5A | 1.3A-5.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303015D | 3.0*3.0*1.5 | 0.15uH-22uH | 6.0mΩ-700mΩ | 1.2A-15.0A | 1.0A-11.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303018D | 3.0*3.0*1.8 | 0.22uH-4.7uH | 7.0mΩ-87mΩ | 4.2A-16.0A | 3.0A-9.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC303020D | 3.0*3.0*2.0 | 0.15uH-15uH | 5.0mΩ-260mΩ | 2.2A-17.0A | 1.5A-12.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404010S | 4.0*4.0*1.0 | 10uH | 280mΩ | 2.0A | 2.0A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404012S | 4.0*4.0*1.2 | 0.47uH-10uH | 14mΩ-235mΩ | 2.5A-11.5A | 2.0A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404020S | 4.0*4.0*2.0 | 0.33uH-22uH | 6.0mΩ-330mΩ | 2.3A-17.0A | 1.3A-8.5A | - 55 °C + 125 °C | FTC系列.pdf | ||
| FTC404030S | 4.0*4.0*3.0 | 0.33uH-6.8uH | 4.5mΩ-62mΩ | 5.1A-25.0A | 3.8A-16.0A | - 55 °C + 125 °C | FTC系列.pdf |
